Training – Creating Assemblies

Getting Started with Training

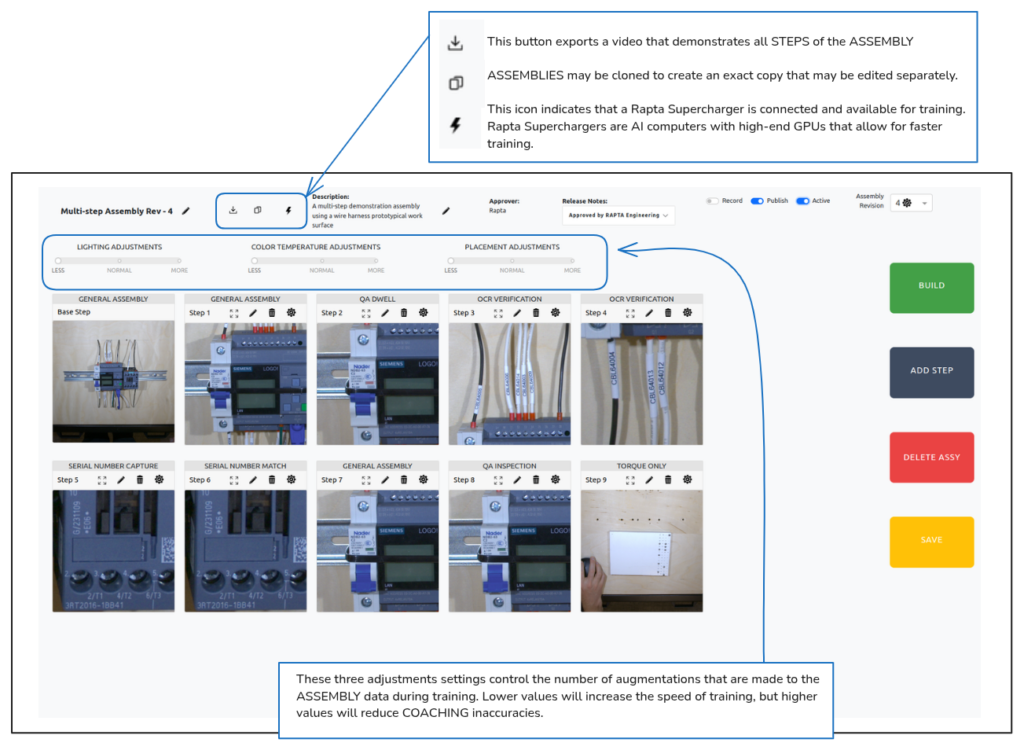

Training is the process of programming the steps of a new assembly into the Rapta Supercoach. Each step represents a distinct action taken by the user or point in time requiring a Quality Assurance (QA) check. Training assemblies is a completely customizable process. Users can decide to track every step of an assembly to get a fully documented production process, or to capture a select few moments in time that represent critical QA decision points.

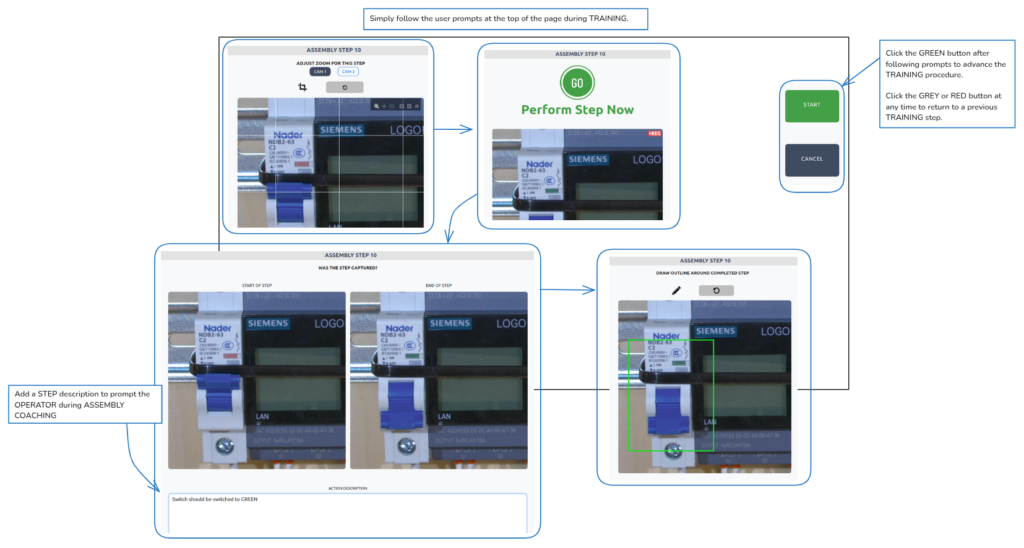

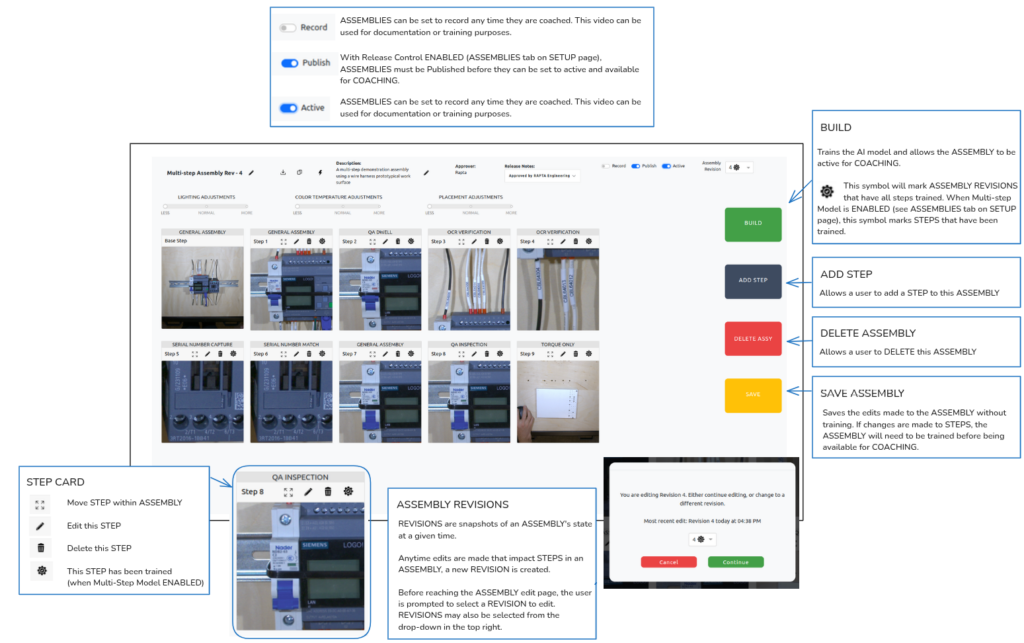

The following images can be viewed in printable PDF format here: RAPTA_UI_QuickReference_TRAINING

Note: Training is a Supervisor level task and may require authentication, depending on your security settings.

The following shortcut keys can be used at any time while using the Rapta Supercoach:

• F11 – Enter and Exit Fullscreen mode
• Ctrl-N – Open a new Chrome window
